Marston flatbed, livestock trailers and low loaders
BALE FRAMEa title
Bale retaining frame, strong simple design, hydraulic side opening, 32ft long x 8ft wide x 12ft high. Suitable for large and medium Heston square bales, 6ft round & 4ft round vertically stacked bales.
New Curtainsider Trailers
16 tonne capacity, 8.3m x 2.5m, 2.85m (to under pelmet) for 3 box high.
Multi-leaf sprung drawbar, ADR 127mm round commercial axles with 420 x 180 brakes - 10 stud, 3 leaf 100mm wide parabolic tandem suspension, air/hydraulic with load sensing, 445/45R 19.5 tyres, LED beacon and full LED lighting.

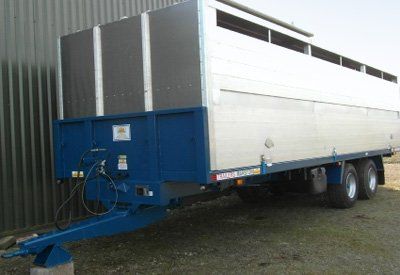

New commercial specification aluminium livestock container
28ft x 8ft 2in with two internal slam shut doors, cattle specification (sheep decks optional), with or without Marston high speed trailer.

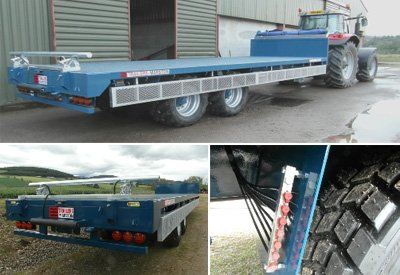

PT16 trailer
Marston PT16 trailer 25ft, payload 16 tonnes (8 box), granning 127mm round commercial 1800 track axles (420 x 180 brakes), load sensing valve, BKTFL693 Ridemax 560/45 22.5 mudguards, cover tray and plastic rope box, box pusher and nudge bar, galvanised twin ram side step, LED beacon and full LED lighting.
MHM LOW LOADER
MHM Low Loader 16 ton two-axle, 25ft (20ft bed plus 5ft beavertail)
8 stud agric. axles, hydraulic brakes, LED lighting incl. beacon, spring ramps,
sprung drawbar, 215/75R 17 twin wheels, timber floor, steel sheeted beavertail
with grip bars, toolbox, 7 leaf spring suspension, heavy duty towing eye. painted 2 pack A.S. Marston blue.
MHM Low loader
MHM Low Loader 30 ton tri-axle,
oil & air brakes with load sensing, LED lights, LED rear flashers, 850mm wide hydraulic ramps with forklift facility, sprung drawbar, 215/75 R 17.5 twin wheels, outriggers with timber storage tray, toolbox, 2 pack paint, 7 leaf spring suspension, HD towing eye, timber floor with steel chequer plate beaver, colour - New Holland blue.
MHM low loader
MHM Low Loader 16 ton 2 axle, 25ft overall (20ft x 5ft bearver), 10 stud commercial axles, single leaf 30T tie road suspension, air & hydraulic brakes (ABS ready), 445/45 R19.5 wheels (baby S.S) 650mm wide manual ramps. LED lights, tool box, steel chequer plate floor, fixed drawbar, lashing rings.
MHM Dump Trailer
18 Ton dumper trailer, 4m x 2.5m, 445/65R 22.5 wheels, 10 stud, commercial axles, hydraulic brakes, LSV, sprung drawbar, LED lights. you've added your content, you can
DUMP TRAILER
T8mm floor, 6mm sides, 4.5 x 2.3 x 0.9 with hydraulic drop down door, single leaf parabolic suspension (30 tonne), new 425/65R 22.5 wheels (10 stud), air/hydraulic brakes with LSV (420x180), sprung drawbar, full reg lights (rear with added protection).
